Bicycle Chains

THC brand Bicycle Chains are manufactured to ISO 606 and GB 3579. Quality meets the requirements specified in IS 4210. Products are available in two series: 082 (1/2" *3/32") and 081 (1/2" * 1/8") in 12 specifications. Besides the bicycle industry, these chains are also applied in textile machines and agricultural machineries.

Bicycle Chains: 42 and 47

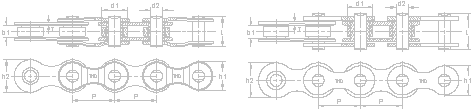

Bicycle Chains: 48 and 48H

Bicycle Chains: 86-2 and 86-3

Bicycle Chains: 91 and 94

THC Chain #	P	d1	d2	L	b1	U. T. S. (daN)	Applications
42	12.7	7.8	3.64	10.3	3.4	8010	single speed
47	12.7	7.8	3.63	8.1	2.4	8400	10 speed
48 (48H)	12.7	7.8	3.63	8.1	2.4	8010	12 speed
86-2	12.7	7.8	3.64	9.3	3.4	8010	single speed
86-3	12.7	7.8	3.64	9.3	3.4	8010	3 speed
91	12.7	7.8	3.63	7.3	2.4	8010	21 speed
94	12.7	7.8	3.63	7.8	2.4	8010	18 speed
