Agricultural Roller Chains
THC brand Agricultural Roller Chains are strictly built in accordance with ISO487. These chains are typically applied in combine harvesters, round balers, feed wagon lifts, etc. Attachments are also available (A1, ATT, C5E, C6E, C11E, C13E, C17E, C30E, CPE, A19, F14, F4, K1, K19, K25,
K27, K39M, KV41M and OL).

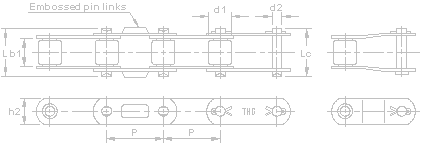

THC Chain # |
P |
b1 |
d1 |
d2 |
h2 |
T |
L |
UTS (kN) |
CA550 |
41.40 |
20.20 |
16.87 |
7.16 |
19.30 |
2.65 |
34.90 |
39.10 |
CA550-45 |
41.40 |
19.81 |
15.24 |
7.16 |
19.05 |
2.75 |
34.50 |
45.00 |
CA550-55 |
41.40 |
19.81 |
17.78 |
7.16 |
19.05 |
2.75 |
34.50 |
45.00 |
CA550HD |
41.40 |
19.48 |
16.66 |
8.28 |
19.81 |
3.05 |
36.83 |
- |
CA551X* |
41.40 |
20.24 |
16.66 |
11.10 |
28.58 |
3.94 |
42.06 |
- |
CA555 |
41.40 |
12.70 |
16.81 |
7.16 |
19.30 |
3.15 |
29.60 |
42.90 |
CA557 |
41.40 |
19.81 |
17.80 |
7.92 |
23.10 |
- |
37.10 |
64.00 |
CA620 |
42.01 |
24.51 |
17.91 |
7.16 |
19.05 |
- |
41.50 |
47.50 |
CA624 |
38.40 |
19.05 |
15.88 |
8.28 |
20.50 |
- |
35.30 |
39.10 |
CA960 |
41.40 |
22.61 |
17.78 |
8.89 |
23.11 |
3.05 |
40.13 |
- |
38.4-HL |
38.40 |
19.05 |
10.20 |
6.92 |
17.30 |
2.50 |
33.80 |
- |
38.4-R |
38.40 |
19.05 |
15.88 |
6.92 |
17.20 |
2.50 |
33.40 |
33.00 |
38.4-SPL |
38.40 |
19.05 |
21.00 |
6.92 |
17.20 |
- |
33.40 |
33.00 |
38.4-V |
38.40 |
18.00 |
15.88 |
6.92 |
17.30 |
3.00 |
33.40 |
40.00 |
38.4-VB |
38.40 |
19.05 |
15.88 |
8.27 |
20.50 |
3.00 |
35.30 |
52.92 |
38.4-VSPL |
38.40 |
18.00 |
21.00 |
6.92 |
17.20 |
- |
33.40 |
40.00 |
CA2050 |
31.75 |
9.53 |
10.08 |
5.08 |
14.68 |
2.03 |
20.19 |
- |
CA2060H |
38.10 |
12.75 |
11.91 |
5.94 |
18.00 |
3.05 |
28.60 |
31.10 |
CA2063H |
38.10 |
12.70 |
11.89 |
5.95 |
19.30 |
2.65 |
29.40 |
31.00 |
CA2801 |
30.00 |
19.00 |
15.88 |
8.27 |
20.50 |
3.00 |
34.40 |
52.92 |
CA39 |
38.40 |
19.00 |
15.88 |
6.92 |
17.20 |
2.50 |
33.10 |
31.10 |
CA395* |
38.40 |
19.00 |
10.38 |
6.92 |
17.20 |
- |
31.40 |
36.00 |
For information on drive series agriculture chains, please visit Agricultural Attachment Chains.
