BS/DIN Standard Stainless Steel Roller Chains

THC brand BS/DIN Standard Stainless Steel Chains are built in accordance with ISO 606B, BS 228 and DIN 8187. Products are available in 304, 316, 316L or 420 stainless steel for single strand (duplex), double strand (duplex) and triple strand (triplex).

Of the materials, 304 stainless steel is the most popular one on the worldwide market. All the parts of THC brand European standard short pitch stainless steel roller chains are made completely of 304 stainless steel, which are ideal for applications where resistance to acid or alkaline is required, or where the chain will be exposed to moisture, water, or temperature variations. Typical applications are found for bakery machines, food preparation, packaging plant, pharmaceutical industry, etc.

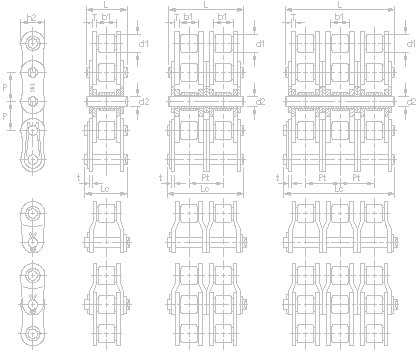

BS/DIN Standard Short Pitch Stainless Steel Roller Chains

THC Chain #	P	d1	b1	d2	T/t	h2	Pt	L	U.T.S. (kN)	Wt. (kg/m)
05BSS-1	8.00	5.00	3.00	2.31	0.75	7.00	-	7.80	3.30	0.20
05BSS-2							5.64	13.50	6.50	0.38
05BSS-3								19.10	9.00	0.56
06BSS-1	9.525	6.35	5.72	3.28	1.00/1.27	8.20	-	12.54	4.20	0.38
06BSS-2							10.24	22.80	8.40	0.74
06BSS-3								33.00	12.70	1.10
08BSS-1	12.70	8.51	7.75	4.45	1.65	11.80	-	17.00	10.00	0.74
08BSS-2							13.92	31.00	19.30	1.47
08BSS-3								44.90	27.00	2.20
10BSS-1	15.875	10.16	9.65	5.08	1.65	14.60	-	19.20	13.70	0.95
10BSS-2							16.59	35.80	27.00	1.88
10BSS-3								52.40	37.80	2.81
12BSS-1	19.05	12.07	11.68	5.72	1.80	16.00	-	22.00	15.60	1.23
12BSS-2							19.46	41.50	29.60	2.42
12BSS-3								60.90	41.40	3.61
16BSS-1	25.40	15.88	17.02	8.28	4.00/3.20	20.90	-	35.30	40.50	2.78
16BSS-2							31.88	67.20	79.00	5.48
16BSS-3								99.10	110.00	8.35
20BSS-1	31.75	19.05	19.56	10.19	4.50/3.60	26.00	-	40.40	56.00	3.90
20BSS-2							36.45	76.90	107.50	7.70
20BSS-3								113.30	151.20	10.44
24BSS-1	38.10	25.40	25.40	14.63	6.00/5.00	33.00	-	53.30	92.80	7.15
24BSS-2							48.36	101.70	171.70	14.10
24BSS-3								150.00	250.00	20.79
28BSS-1	44.45	27.94	30.99	15.90	7.50/6.20	36.70	-	65.10	122.50	9.36
28BSS-2							59.56	124.70	226.60	18.52
28BSS-3								184.30	330.70	27.70
32BSS-1	50.80	29.21	30.99	17.81	7.00/6.20	41.90	-	65.60	150.00	9.94
32BSS-2							58.55	124.10	277.50	19.60
32BSS-3								182.70	405.00	29.26

1) The above single strand stainless steel roller chains marked with shade are available from stock and can be shipped off the shelf within 24 hours after receipt of the payment.
2) For BS/DIN Stainless Miniature Chain 03BSS and 04BSS, please visit this link.
3) For stainless steel roller chain sprockets to suit these stainless steel chains, please contact the sales department for pricing.
